WOVYN SEEG

Epilepsy Implants Redefined

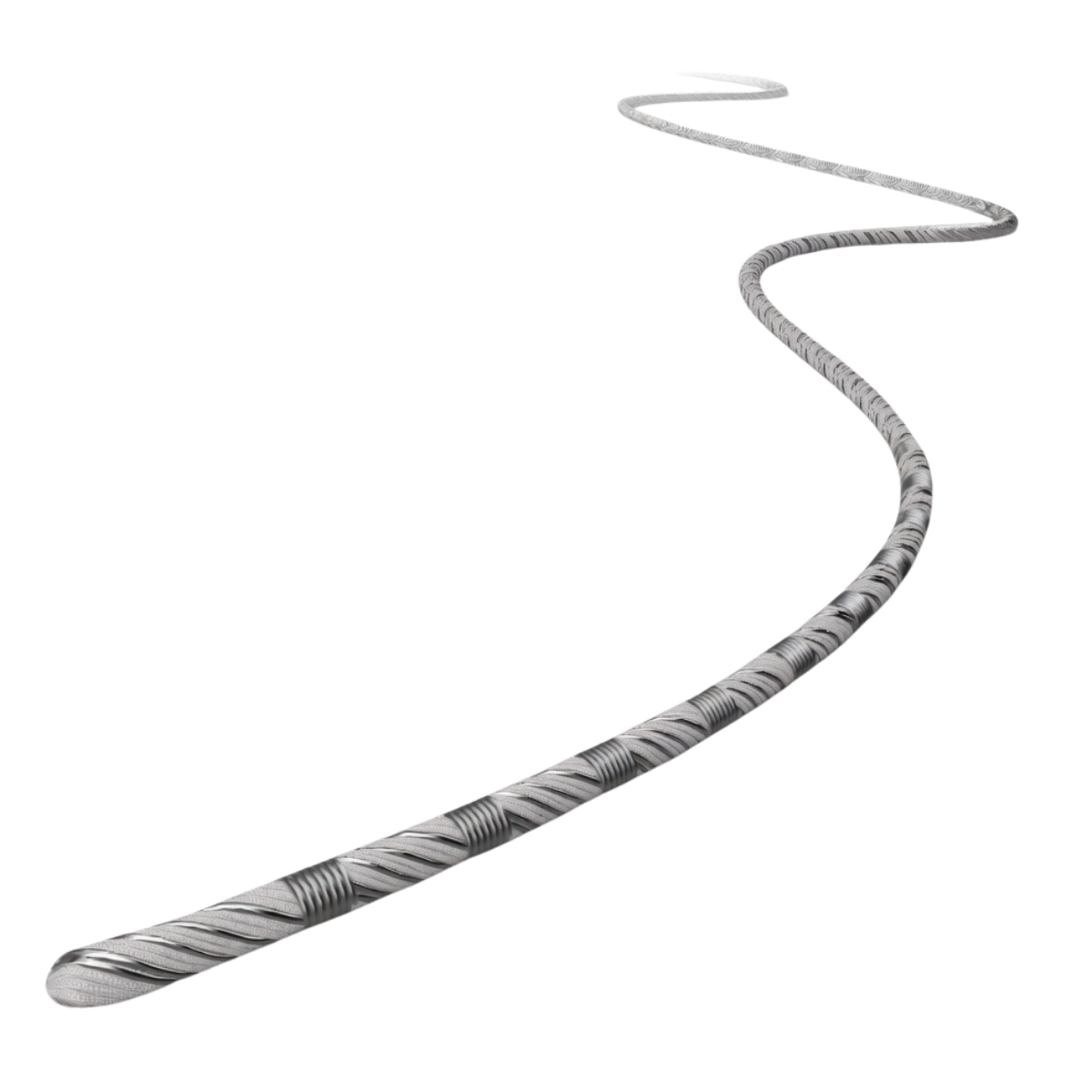

Wovyn SEEG is the world's first machine-made fabric depth electrode, manufactured with a novel 3D micro-weaving technology. Engineered for neurosurgical and epilepsy teams, it delivers small-diameter, high-density electrodes with the softest leads on the market. Combined with Alpha Omega's field support, Wovyn SEEG provides a streamlined workflow for stereoelectroencephalography (SEEG) procedures.

Wovyn Fabric Depth Electrodes are compatible with all robotic and framed workflows commonly used in SEEG implantation.

Key Features

Braided Textile Construction
The first machine-made fabric depth electrodes that deliver small-diameter and high-density contacts. Wovyn's unique manufacturing delivers small-diameter, high-density electrodes with the softest leads on the market.

Integrated Folded Wire Ring Contacts
Utilizing 3D micro-weaving technology, the platinum iridium contacts are integrated directly into the lead, fixing them in place.

Dedicated Team of Field Support Reps
Alpha Omega's field support ensures a streamlined and efficient workflow from planning through implantation.

Broad Compatibility
Compatible with all robotic and framed workflows commonly used in SEEG implantation.

* Disclaimer: This page may include information about products that may not be available in your region or country. Please consult the approved indications for use. Content on specific Alpha Omega products is not intended for users in markets that do not have authorization for use.

Want to hear more about WOVYN ?

Fill up your details and we will get back to you within 4 business days

Error
Order now

Braided Textile Construction
Wovyn's unique manufacturing delivers small-diameter, high-density electrodes with the softest leads on the market. The first machine-made fabric depth electrodes that deliver small-diameter and high-density contacts.

Integrated Folded Wire Ring Contacts
The 3D micro-weaving process fully integrates the platinum iridium contacts directly into the lead, fixing them in place. Utilizing 3D micro-weaving technology, the platinum iridium contacts are integrated directly into the lead.

Supports Precision Localization
Compatible with all robotic and framed workflows commonly used in SEEG implantation.

Dedicated Team of Field Support Reps
Alpha Omega's field support brings industry-leading support into SEEG cases to ensure a streamlined and efficient workflow from planning to implantation.

Electrode Construction:

  • Fabric TPU Electrodes with Platinum Iridium Contacts
  • Small Diameter of 0.8mm
  • Removable Stainless Steel Stylet
Part Number Contact Size Contact Space Number of Contacts Exploration Length
SEG-S101015-01 1.5mm 1mm 10 24mm
SEG-S121015-01 1.5mm 1mm 12 29mm
SEG-S141015-01 1.5mm 1mm 14 34mm
SEG-S141515-01 1.5mm 1.5mm 14 40.5mm
SEG-S161515-01 1.5mm 1.5mm 16 46.5mm
SEG-S142515-01 1.5mm 2.5mm 14 53.5mm
SEG-S162515-01 1.5mm 2.5mm 16 61.5mm
SEG-S163015-01 1.5mm 3.0mm 16 69mm
SEG-S163815-01 1.5mm 3.8mm 16 81mm
